Description
Wilwood’s Speed Xtreme SX6R six piston calipers are combined with 15.00” dynamic-mount, Lug-Drive rotors to create the ultimate C8 Corvette big brake package. These rotors are more than 2” larger in diameter than the base model brakes, 1.7” larger than the factory Z51, and 0.5” larger than the Z06. They deliver better pedal feel, increased brake torque, greater thermal capacity without distortion, and an improved appearance.
Part numbers:

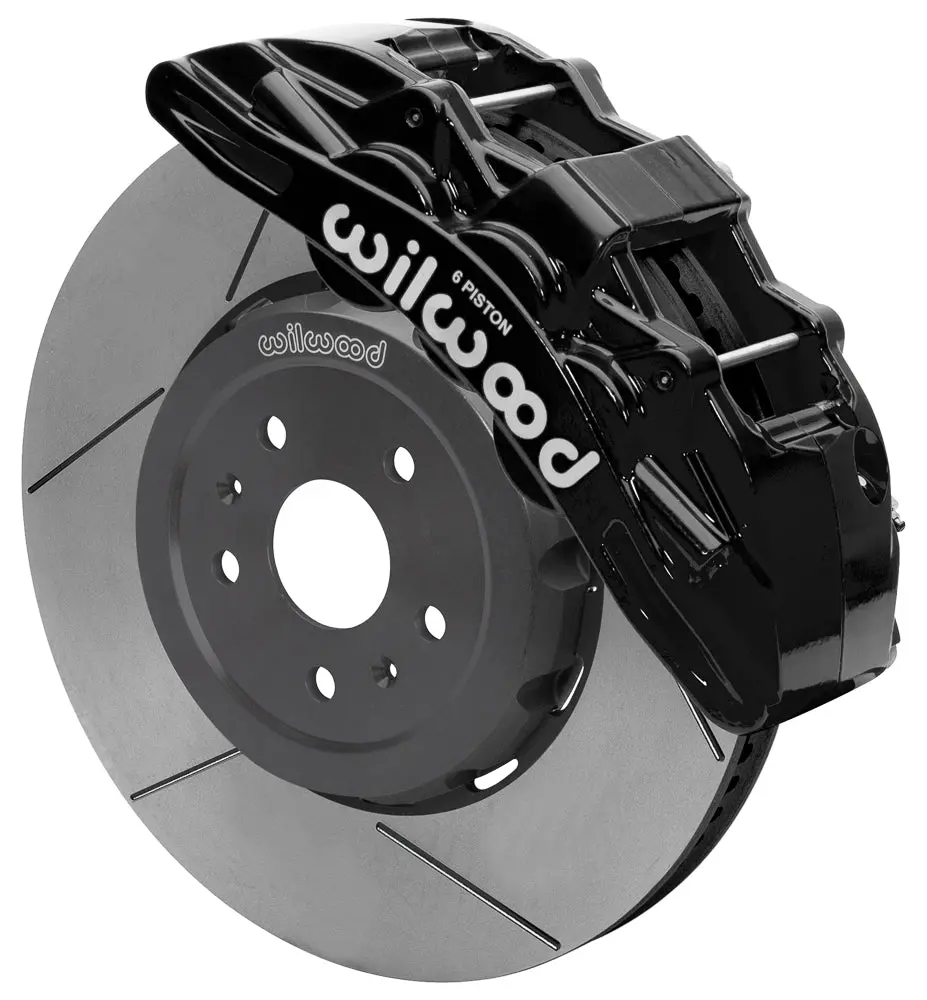

Black caliper, slotted Spec37 rotor: 140-17004

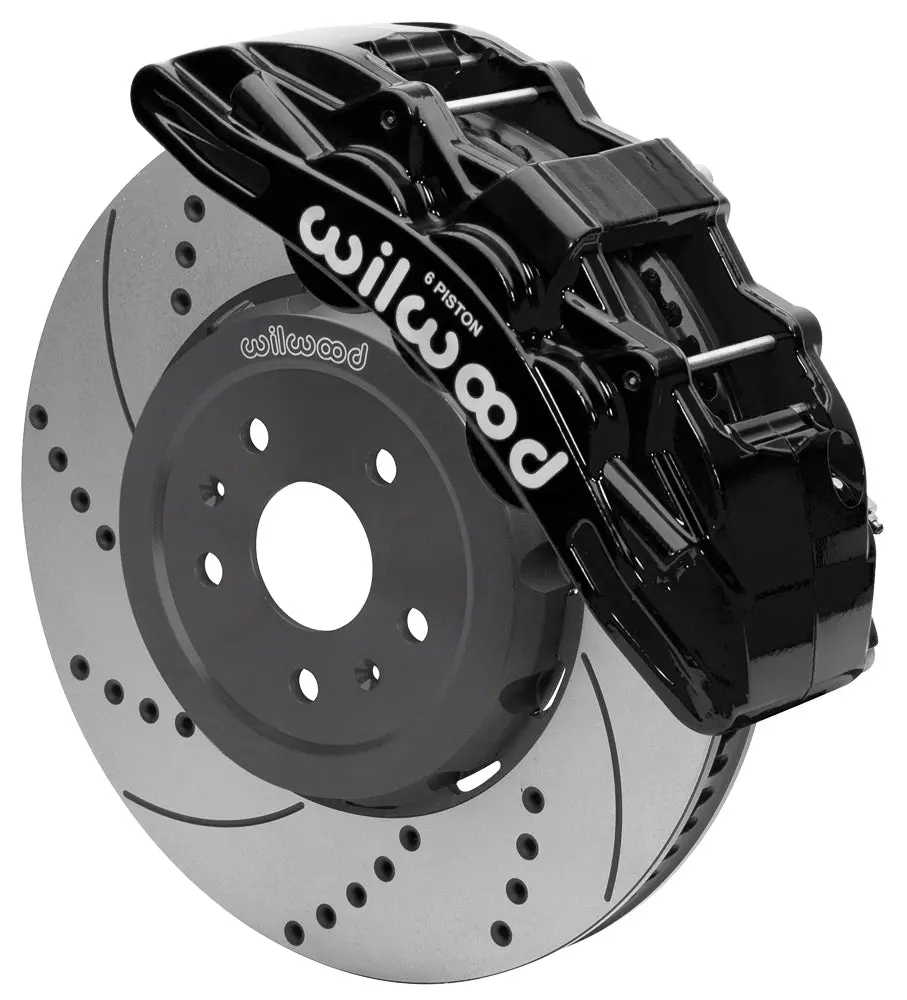

Black caliper, drilled & slotted SRP rotor: 140-17004-D

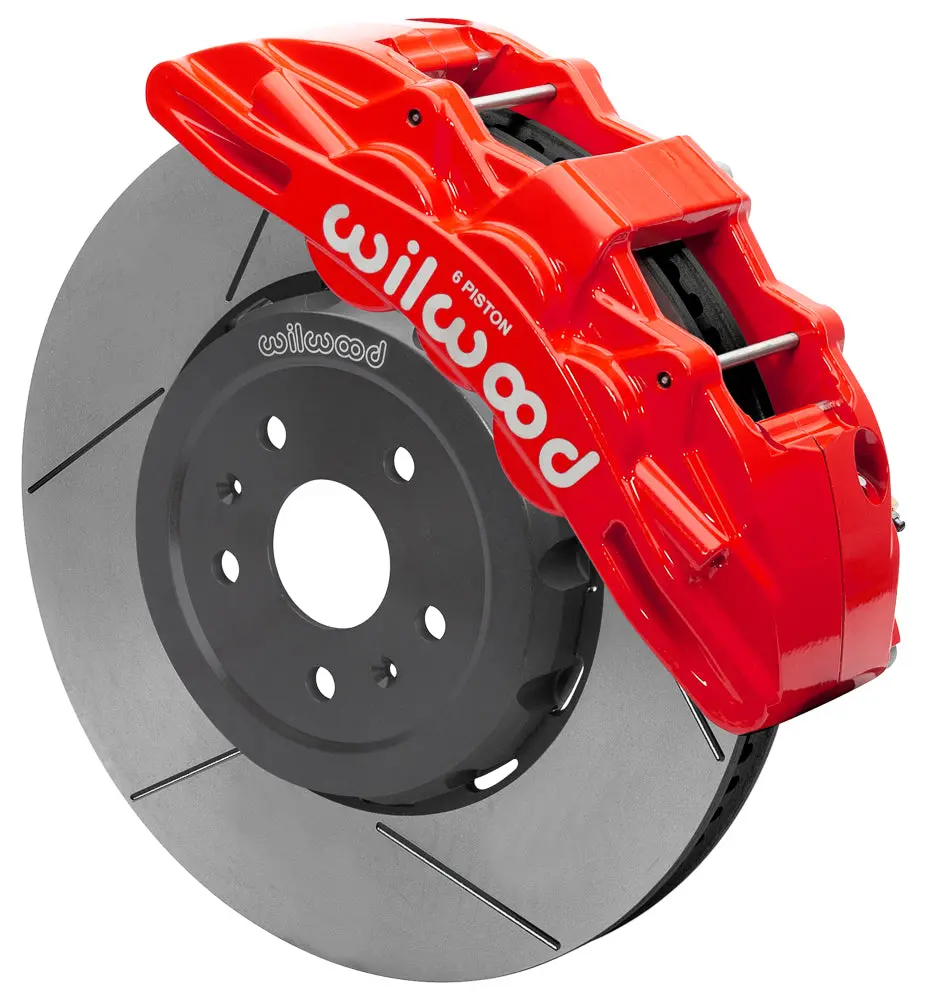

Red caliper, slotted Spec37 rotor: 140-17004-R
Red caliper, drilled & slotted SRP rotor: 140-17004-DR
KIT FEATURES:
• Complete bolt-on installation that works with the factory master cylinder and computer; no modifications required
• Increased thermal capacity for heavy use without fading or distortion
CALIPERS: SX6R
• Strong and rigid stress flow forged aluminum caliper body with closed central bridge resists deflection for better pedal feel and greater clamping • Six stainless steel pistons in Type-III hard anodized bores with high-temperature seals for durability
ROTORS: Spec37 GT or SRP Drilled/Slotted
• Lug-Drive mounting isolates thermally induced stresses between the hat and rotor
• Race-proven Lug-Drive system eliminates need for safety wire, thread lockers, or torque wrenches
• Black E-coat finish prevents corrosion throughout to preserve appearance
• Big 15.00” Spec37 72 curved vane rotors improve performance and service life, with more brake torque, improved thermal capacity, and better cooling
BRAKE PADS: BP-10
• BP-10 street performance pads provide smooth, and consistent response with long wear over a broad range of temperatures (other compounds available)
INSTALLATION PARTS:
• Caliper brackets, stainless steel braided Flexlines, and premium grade installation hardware included
