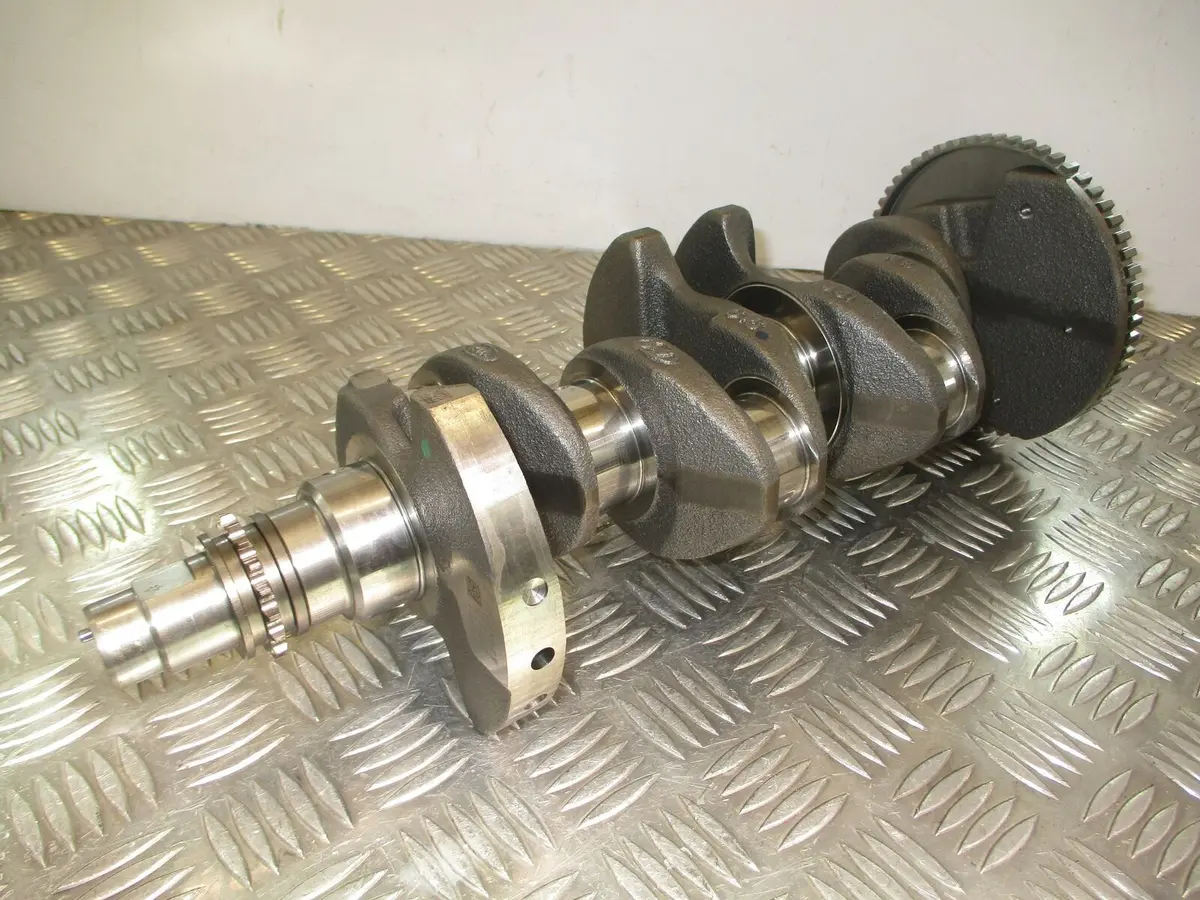

Kia Sportage 1.6L Gamma Petrol Crankshaft (G4FD) – Also Fits Tucson, Veloster, Kona, Elantra, Rio & More

Description

Whatsapp +37066686665

Wikipedia:

Petrol engines

Model	Eng. code	Power	Torque	Comp.	Weight
1.6 Gamma GDi	G4FD	140 PS (103 kW; 138 hp) @ 6300 rpm	17 kg⋅m (167 N⋅m; 123 lbf⋅ft) @ 4850 rpm	11.0:1	150LB
1.6 Gamma MPi	G4FC	130 PS (96 kW; 128 hp) @ 6000 rpm	16 kg⋅m (157 N⋅m; 116 lbf⋅ft) @ 4850 rpm	10.5:1	150LB
1.6 Gamma MPi	G4FG	132 PS (97 kW; 130 hp) @ 6300 rpm	16 kg⋅m (157 N⋅m; 116 lbf⋅ft) @ 4850 rpm	10.5:1	150LB
1.6 Gamma T-GDI	G4FJ	177 PS (130 kW; 175 hp) @ 5500 rpm	27 kg⋅m (265 N⋅m; 195 lbf⋅ft) @ 1500-4500 rpm	9.5:1	155LB
1.6 Gamma T-GDI	G4FJ	204 PS (150 kW; 201 hp) @ 6000 rpm	27 kg⋅m (265 N⋅m; 195 lbf⋅ft) @ 1750-4500 rpm	9.5:1	155LB
1.6 Gamma T-GDI	G4FJ	204 PS (150 kW; 201 hp) @ 6000 rpm	27 kg⋅m (265 N⋅m; 195 lbf⋅ft) @ 1500-4500 rpm	10.0:1	155LB

Liquefied Petroleum Gas engines

Model	Eng. code	Displ.	Bore × Stroke	Power	Torque	Comp.
1.6 Gamma LPI	L4FA	1.6 L (1,591 cc)	77 mm × 85.4 mm (3.03 in × 3.36 in)	105 PS (77 kW; 104 hp) @ 5700 rpm	15.1 kg⋅m (148 N⋅m; 109 lbf⋅ft) @ 4000 rpm	13.0:1
		electric motor	N/A	44 PS (32 kW; 43 hp) @ 1850-2500 rpm	17.3 kg⋅m (170 N⋅m; 125 lbf⋅ft) @ 0-1800 rpm	N/A
		combined	N/A	138 PS (101 kW; 136 hp) @ 5700 rpm	27 kg⋅m (265 N⋅m; 195 lbf⋅ft) @ 4000 rpm	13.0:1

1.6 Gamma GDi (G4FD)

The 1.6 Gamma GDi engine Gasoline direct injection, and Dual-Continuous Variable Valve Timing.^[3] Power output to 138 hp (103 kW; 140 PS) at 6300 rpm and 123 lb⋅ft (167 N⋅m) at 4850 rpm.^[4]

Applications:

• Hyundai Accent (2010-)
• Hyundai Veloster (2011-2018)
• Kia Sportage

1.6 Gamma MPi (G4FC)

The Gamma MPI version makes 122 hp (91 kW; 124 PS) at 6,000 rpm and 115 lb⋅ft (156 N⋅m) of torque at 4,200 rpm.

The Gamma II MPI version with dual CVVT (continuous variable valve timing) makes 128 hp (95 kW; 130 PS) at 6,000 rpm with 116 lb⋅ft (157 N⋅m) of torque at 4,850 rpm.

1.6 Gamma MPi (G4FG)

The Gamma II MPI version with dual CVVT (continuous variable valve timing) makes 132 hp (98 kW; 134 PS) at 6,300 rpm with 116 lb⋅ft (157 N⋅m) of torque at 4,850 rpm.

1.6 Gamma T-GDI (G4FJ)

Exhaust and twin-scroll turbocharger of the T-GDI version

It is a version of 1.6 Gamma GDi with twin-scroll turbocharger, air guided intercooler, direct fuel injection system and dual CVVT.

The engine was unveiled in the 11th Hyundai-Kia International Powertrain Conference.^[5]

The engine has been revised in the 2nd Generation Veloster Turbo to include a new pressurized cooling system, higher compression ratio of 18, electronically actuated wastegate, and a new ECU (CPEGD2.20.3).

1.6 Gamma LPI (L4FA)

It is a hybrid variant with liquefied petroleum gas engine and electric motor.

It was used in Kia Forte, Hyundai Avante LPI hybrid,^[6] Kia Forte LPi, Hyundai Avante LPi (Korea domestic only)

Usage

• Hyundai Accent
• Hyundai Kona
• Hyundai Creta^[7]
• Hyundai Elantra
• Hyundai Getz
• Hyundai HB20
• Hyundai i20
• Hyundai i30
• Hyundai i40
• Hyundai ix35
• Hyundai Veloster
• Hyundai Venue
• Kia Carens/Rondo
• Kia Cee’d
• Kia Forte/Cerato
• Kia Rio
• Kia Seltos
• Kia Soul
• Kia Sportage
• Kia Stonic
• Kia Venga
