Fore Innovations 10-Micron Billet Fuel Filter – 88mm with AN Fittings

Description

Fore Innovations is a leader in high performance fuel systems.
The base filter assembly includes a Cellulose filter element, 10 micron, safe for gasoline (up to E10). Choose microglass if you’re going to run E85, or stainless steel if you want a reusable element.

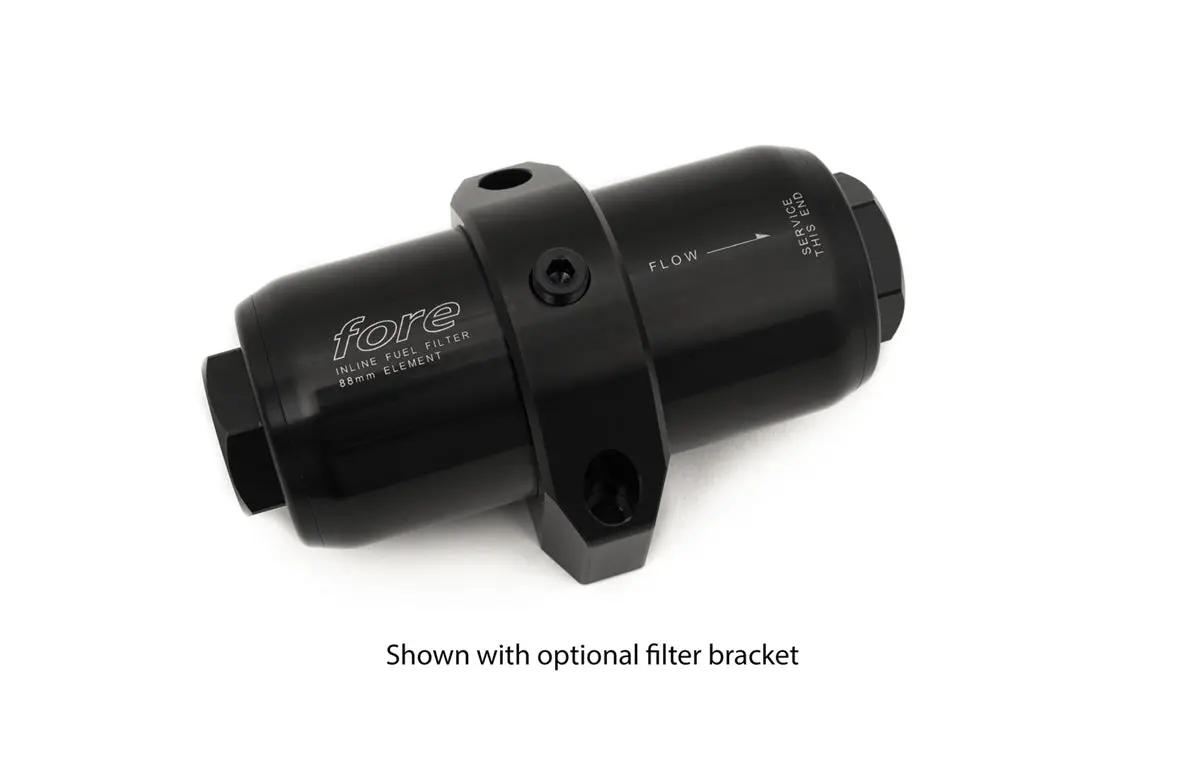

The AN fitting ends are NOT included, you will have to purchase those separately: Choose a billet mounting bracket to be included, if needed. Otherwise you will need a clamp that will fit over the 2.2″ diameter body.
SPECIFICATIONS

• Filter media: cellulose, microglass SSD (anti-static), or stainless steel
• O-ring material: Viton
• Inlet and Outlet ports: -10 o-ring female

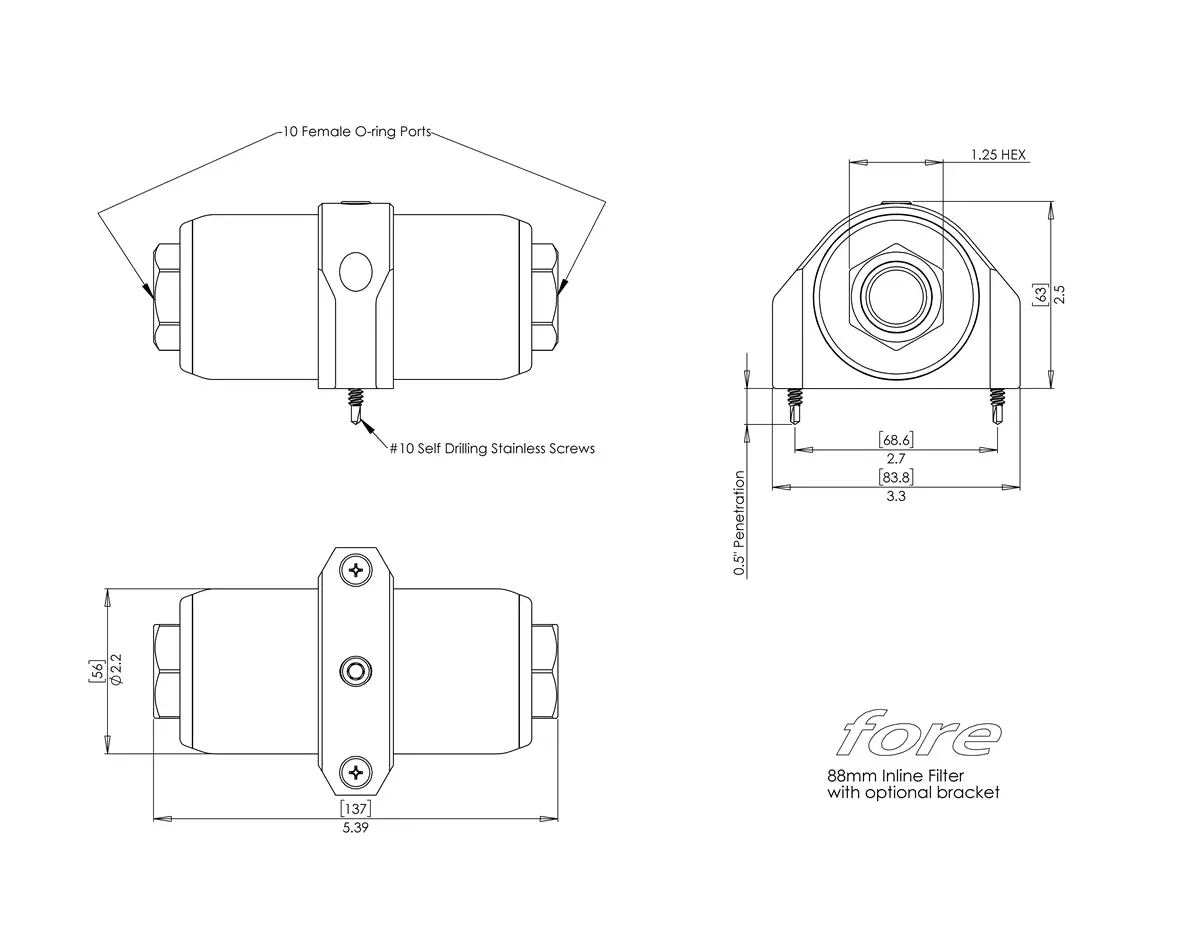

• Body Diameter: 2.2 inches
• Body Length: 5.4 inches

All Fore Innovations filtration media exceeds Bosch fuel injector filtration requirement
of 5µ, minimum 82% capture efficiency, and 35µ, 100% capture efficiency (ISO/TR 19438);
however, Injector Dynamics recommends finer filtration provided by our cellulose and
microglass SSD elements
POOR FILTRATION MAINTENANCE WILL LEAD TO DEGRADEDFUEL SYSTEM PERFORMANCE AND CAN DESTROY FUEL PUMP(S)
CELLULOSE FILTER ELEMENT

• cellulose element, bonded aluminum endcaps, Viton o-ring
• provides 10 micron nominal, 14 micron absolute filtration
• use with gasoline and race gas
• disposable
• recommended filtration for use with Injector Dynamics fuel injectors

MICROGLASS SSD (ANTI-STATIC) FILTER ELEMENT

• microglass element, static dissipating, Viton o-ring
• provides 12 micron absolute filtration
• use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
• disposable
• recommended filtration for use with Injector Dynamics fuel injectors

STAINLESS FILTER ELEMENT

• stainless element, stainless endcaps, Viton o-ring
• provides 10 micron nominal, 26 micron absolute filtration
• use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
• re-usable
